Interrupted Time Series (ITS) with scikit-learn models#
This notebook shows an example of using interrupted time series, where we do not have untreated control units of a similar nature to the treated unit and we just have a single time series of observations and the predictor variables are simply time and month.
import pandas as pd
from sklearn.linear_model import LinearRegression
import causalpy as cp
%config InlineBackend.figure_format = 'retina'
Load data#
df = (
cp.load_data("its")
.assign(date=lambda x: pd.to_datetime(x["date"]))
.set_index("date")
)
treatment_time = pd.to_datetime("2017-01-01")
df.head(5)
| month | year | t | y | |
|---|---|---|---|---|
| date | ||||
| 2010-01-31 | 1 | 2010 | 0 | 25.058186 |
| 2010-02-28 | 2 | 2010 | 1 | 27.189812 |
| 2010-03-31 | 3 | 2010 | 2 | 26.487551 |
| 2010-04-30 | 4 | 2010 | 3 | 31.241716 |
| 2010-05-31 | 5 | 2010 | 4 | 40.753973 |
Run the analysis#
result = cp.InterruptedTimeSeries(
df,
treatment_time,
formula="y ~ 1 + t + C(month)",
model=LinearRegression(),
)
Examine the results#

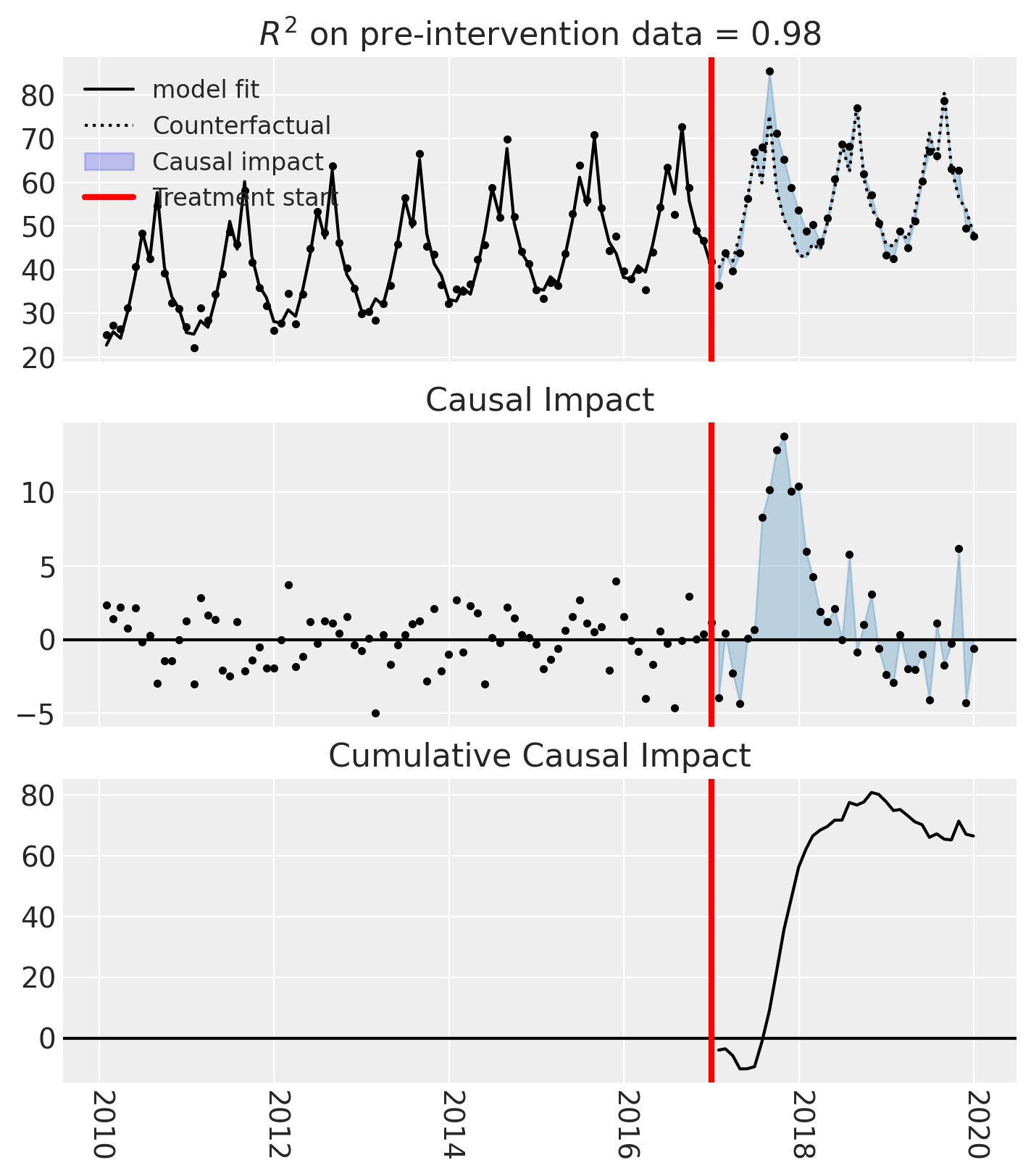

fig, ax = result.plot()
result.summary(round_to=3)
==================================Pre-Post Fit==================================
Formula: y ~ 1 + t + C(month)
Model coefficients:
Intercept 0
C(month)[T.2] 2.85
C(month)[T.3] 1.16
C(month)[T.4] 7.15
C(month)[T.5] 15
C(month)[T.6] 24.8
C(month)[T.7] 18.2
C(month)[T.8] 33.5
C(month)[T.9] 16.2
C(month)[T.10] 9.19
C(month)[T.11] 6.28
C(month)[T.12] 0.578
t 0.21
We can get nicely formatted tables from our integration with the maketables package.
from maketables import ETable
ETable(result, coef_fmt="b:.3f")
| y | |
|---|---|
| (1) | |
| coef | |
| month=2 | 2.852 |
| month=3 | 1.162 |
| month=4 | 7.148 |
| month=5 | 15.036 |
| month=6 | 24.790 |
| month=7 | 18.214 |
| month=8 | 33.483 |
| month=9 | 16.247 |
| month=10 | 9.194 |
| month=11 | 6.279 |
| month=12 | 0.578 |
| t | 0.210 |
| Intercept | 0.000 |
| stats | |
| N | 120 |
| R2 | 0.975 |
| Format of coefficient cell: Coefficient | |
Effect Summary Reporting#
For decision-making, you often need a concise summary of the causal effect. The effect_summary() method provides a decision-ready report with key statistics.
Note
OLS vs PyMC Models: When using OLS models (scikit-learn), the effect_summary() provides confidence intervals and p-values (frequentist inference), rather than the posterior distributions, HDI intervals, and tail probabilities provided by PyMC models (Bayesian inference). OLS tables include: mean, CI_lower, CI_upper, and p_value, but do not include median, tail probabilities (P(effect>0)), or ROPE probabilities.
# Generate effect summary for the full post-period
stats = result.effect_summary()
stats.table
| mean | ci_lower | ci_upper | p_value | relative_mean | relative_ci_lower | relative_ci_upper | |
|---|---|---|---|---|---|---|---|
| average | 1.845561 | 0.161437 | 3.529686 | 0.032645 | 3.366709 | 0.150601 | 6.582817 |
| cumulative | 66.440209 | 5.811718 | 127.068701 | 0.032645 | 121.201506 | 5.421618 | 236.981394 |
# View the prose summary
print(stats.text)
During the Post-period (2017-01-31 00:00:00 to 2019-12-31 00:00:00), the response variable had an average value of approx. 57.15. By contrast, in the absence of an intervention, we would have expected an average response of 55.30. The 95% confidence interval of this counterfactual prediction is [53.62, 56.99]. Subtracting this prediction from the observed response yields an estimate of the causal effect the intervention had on the response variable. This effect is 1.85 with a 95% confidence interval of [0.16, 3.53].
Summing up the individual data points during the Post-period, the response variable had an overall value of 2057.42. By contrast, had the intervention not taken place, we would have expected a sum of 1990.98. The 95% confidence interval of this prediction is [1930.35, 2051.61].
The 95% confidence interval of the effect [0.16, 3.53] does not include zero (p-value 0.033). Relative to the counterfactual, the effect represents a 3.37% change (95% CI [0.15%, 6.58%]).
This analysis assumes that the relationship between the time-based predictors and the response observed during the pre-intervention period remains stable throughout the post-intervention period. If the formula includes external covariates, it further assumes they were not themselves affected by the intervention. We recommend inspecting model fit, examining pre-intervention trends, and conducting sensitivity analyses (e.g., placebo tests) to support any causal conclusions drawn from this analysis.
